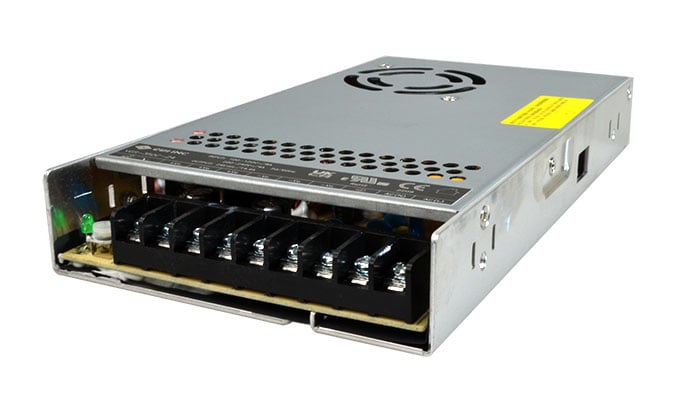

24VDC 350W Enclosed Switchmode Power Supply (SMPS) with Fan

PS324-350F
24VDC 350W Enclosed Switchmode Power Supply

$169.00

QTY Price
1 $169.00
2 $152.00

Description

This 24V 350W Enclosed Switchmode Power Supply features an integrated cooling fan. It has short-circuit, over-current, over-voltage, and over-temperature protection. It has a selectable input range (90 ~ 132 Vac / 180 ~ 264 Vac) and output adjustable via trimpot (+/- 10%).

UL/EN/IEC 62368 certified and designed to meet IEC/EN 60335, and GB4943 system requirements.

Features

  • Selectable input range (90 ~ 132 Vac / 180 ~ 264 VAC)
  • UL/EN/IEC 62368 certified
  • Designed to meet IEC/EN 60335, and GB4943 system requirements
  • Short-circuit, over-current, over-voltage, over-temperature protections
  • Integrated cooling fan
  • Output adjustable via trimpot +/- 10%

Specifications

Model

VGS-350C-24

Output Voltage

24VDC

Output Current (max)

14.6A

Output Power (max)

350.4W

Ripple and Noise1 (typ)

150mVp-p

Efficiency2 (typ)

88%

Dimensions

Weight

700 g

Length

215 mm

Width

115 mm

Height

30 mm
