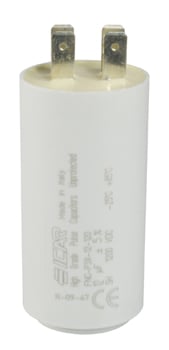

Electric Fence Capacitors 1200VDC
$18.95 - $59.95
Description
Electric Fence Capacitor 6.3 mm female spade terminals with wires. These capacitors are ideal to use as the energy storage capacitor in electric fence energizers. The case material is polypropylene which has a UL94 rating of V2.
Both the case and the epoxy seal comply with the requirements of the glow wire test (at 850°C) in accordance with IEC 60695-2-10 and IEC 60695-2-11. It also has alcohol-resistant printing.
Specifications
Tolerance
±5%
Rated Voltage
1200V
Pulse Rate
1 pulse/s max
Operating Temperature
-25° to +85°C
Case Size
30 x 71 mm
Termination
6.3 x 0.8 mm Double quick-connect terminals
Mounting Options
Non-Stud
Safety Type
P0
Life Expectancy
3 x 108 pulses
Dielectric
Metalized polypropylene film
Full Range
Capacitance | Case Size | I²T rating [A²s] | Product Code |
---|---|---|---|
6uF | 30 x 71 mm | 1.5 | CC4806 |
7.5uF | 30 x 71 mm | 1.5 | CC4807.5 |
8uF | 30 x 71 mm | 1.5 | CC4808 |
10uF | 40 x 71 mm | 11.7 | CC4810 |
12uF | 35 x 71 mm | 3 | CC4812 |
15uF | 45 x 71 mm | 17.2 | CC4815 |
18uF | 40 x 71 mm | 10 | CC4818 |
20uF | 40 x 71 mm | 6.8 | CC4820 |
25uF | 45 x 71 mm | 12.5 | CC4825 |
30uF | 45 x 71 mm | 15.4 | CC4830 |
30uF (with leads) | 45 x 73 mm | CC4830L | |
40uF | 45 x 91 mm | 20 | CC4840 |
50uF | 45 x 91 mm | 25 | CC4850 |
