DeckLink Studio 4K
CM88146
$935.00
| QTY | Price |
|---|---|
| 1 | $935.00 |
Description
The DeckLink Studio 4K Capture has 6G-SDI and 4K HDMI inputs/outputs that support resolutions ranging from SD to Ultra HD 4K (3840x2160) and DCI 4K (4096x2160). Additionally, the DeckLink Studio 4K provides a variety of video and audio connections via an included breakout cable. These connections include analog components, S-Video, composite video, two channels of AES/EBU audio, and four channels of balanced analog audio.
The card also includes RS-422 deck control, a reference input, and a down-converted SD output.
3-Year Limited Manufacturer's Warranty
Features
- 6G-SDI Input/Output
- PCIe Interface
- UHD / DCI 4K 4:2:2 via 6G-SDI or HDMI
- Analog I/O via Breakout Cable
- Down/Up/Cross Conversions
- 4K HDMI Input/Output
- Supports SD, HD, 2K, and 4K Formats
- 1080p 4:4:4 by Single-Link 3G-SDI
- Genlock, RS-422, SD/HD Keyer
- Mac OS X, Windows, and Linux Compatbile
Specifications
Connections
SDI Video Inputs
1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4
SDI Video Outputs
1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4
Analog Video Inputs
1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video. Component supports HD and SD
Analog Video Outputs
1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD
Analog Audio Inputs
4 Channels of professional balanced analog audio via 1/4 inch jack connectors
Analog Audio Outputs
4 Channels of professional balanced analog audio via 1/4 inch jack connectors. Channels 3 & 4 can switch to AES/EBU outputs
AES/EBU Audio Inputs
2 Channels unbalanced with sample rate converter
AES/EBU Audio Outputs
2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature
SDI Audio Inputs
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD
SDI Audio Outputs
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD
HDMI Video Inputs
1 x HDMI type A connector
HDMI Video Outputs
1 x HDMI type A connector
HDMI Audio Inputs
8 Channels embedded in SD, HD, 4K
HDMI Audio Outputs
8 Channels embedded in SD, HD, 4K
Sync Input
Tri-Sync or Black Burst.
Device Control
Sony™ compatible RS422 deck control ports. Serial ports TxRx direction is reversible under software control.
Computer Interface
PCI Express 4 lane generation 2, compatible with 4,8, and 16-lane PCI Express slots.
Software Applications
DaVinci Resolve | Fusion | Final Cut Pro X | Adobe Premiere Pro CC | Avid Media Composer | Adobe After Effects CC | Avid Pro Tools | Steinberg Cubase | Autodesk Smoke | Adobe Photoshop CC
Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K Video Standards (SDI Only)
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p* * SDI Only
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning
SDI Video Sampling
4:2:2, 4:4:4
SDI Colour Precision
8, 10-bit RGB 4:4:4 in all modes up to 1080p25 2K DCI, 8, 10-bit YUV 4:2:2 in all modes
Colour Space
REC 601, REC 709
HDMI Video Sampling
4:4:4, 4:2:2 & 4:2:0
HDMI Colour Precision
10-bit RGB HD / 10-bit YUV in HD and 4K
HDMI Configuration
HDMI 1.4b. Automatically configures to connected display.
Audio Sampling
Television standard sample rate of 48 kHz at 24 bit.
Colour Precision
10-bit
Colour Space
REC 601, REC 709
HDMI Resolution
Pixel for pixel up to 4K resolutions
Multiple Rate Support
HDMI and SDI video connections are switchable between SD/HD/2K and UHD. Component analog video connections are switchable between SD and HD
Copy Protection
HDMI input is unable to capture from copy-protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
Operating Systems
Mac 11.1 Big Sur | Mac 12.0 Monterey or later | Windows 10, 64-bit | Windows 11 | Linux
Power Consumption
22 Watts
Environmental Specifications
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
Operating temperature
5° to 40° C (32° to 104° F)

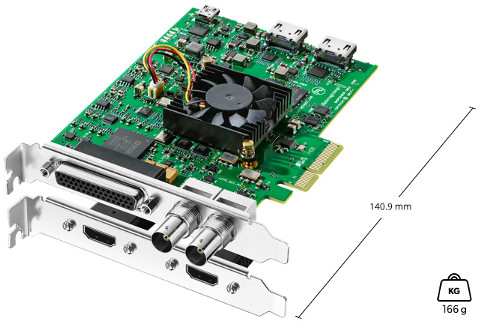

Dimensions
Depth
140.9 mm
Weight
166 g
Image for sizing illustration only, may not be representative of the product.
