Mini Converter Analog to SDI
CM88194
$359.00
| QTY | Price |
|---|---|
| 1 | $359.00 |
Description
The Mini Converter Analog to SDI converts an HD/SD component, NTSC, PAL, or S-video signal to an SDI output. SDI audio can also be embedded from balanced AES/EBU or analog audio inputs.
Convert video from Betacam SP, VHS, set-top boxes, HDV cameras, and other similar devices with this device.
3 Year Limited Manufacturer's Warranty
Features
- Analog to SDI Conversion
- Embedded Audio
Specifications
Connections
SDI Video Outputs
2 x SDI Video Outputs
Analog Video Inputs
NTSC, PAL, S‑Video, and Component SD/HD input
Analog Audio Inputs
2 channels of balanced analog audio
Digital Audio Inputs
2 channels of balanced AES/EBU audio
Multi Rate Support
Auto-detection of SD or HD.
Updates and Configuration
Via USB 2.0 high speed. (480 Mb/s)
Reclocking
Yes
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU‑R BT.656 and ITU‑R BT.601
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Colour Precision
4:2:2
SDI Colour Space
YUV
SDI Auto Switching
Automatically follows format of analog input.
Analog Colour Space
YUV
Analog Colour Precision
4:2:2
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
6.50 Watts
Operational Voltage Range
12 ‑ 31V DC
Operating Systems
Mac 10.15 Catalina | Mac 11.1 Big Sur or later | Windows 10, 64-bit
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing

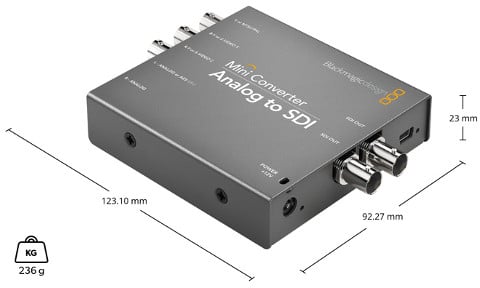

Dimensions
Width
123.10 mm
Length
92.27 mm
Height
23 mm
Weight
236 g
Image for sizing illustration only, may not be representative of the product.
